Vizsla Discovers New Vein with EM Geophysics, Generates New Targets Near Napoleon at Panuco
Receive up-to-date information about the company directly via push notification
Vancouver, British Columbia (May 25, 2021) – Vizsla Silver Corp. (TSX-V: VZLA) (OTCQB: VIZSF) (Frankfurt: 0G3) (“Vizsla” or the “Company” - https://www.commodity-tv.com/ondemand/companies/profil/vizsla-silver-corp/ ) is pleased to provide an update on geophysical surveying completed at the Panuco silver-gold project ("Panuco" or the "Project") in Mexico.
- Fixed loop electromagnetics (“FLEM” or “EM”) has been trialed and detects massive sulphide hosted mineralization on the Napoleon Vein. This mineralization contains very high grades of silver, gold and base metals and extends south beyond the current limits of drilling.
- Multiple new targets generated along the Napoleon and Cinco Senores Vein Corridors.
- Drill testing one target (Josephine Vein) hits massive sulphide in a new vein with three holes proving the success of the technique.
- Vizsla is planning a property wide airborne EM survey to generate targets that directly detect the best-known mineralization style in the district.
Vizsla President and CEO, Michael Konnert, commented: “The trial electromagnetic survey has proven to be extremely successful and adds the ability to directly target the best parts of veins within the district. The high grade, massive sulphide mineralization at Napoleon is not common in epithermal deposits and direct detection with electromagnetics is incredibly rare. Vizsla is currently drilling along four separate vein corridors, and adding this technique to our successful geological targeting, will help the Company demonstrate that Panuco can host a globally significant silver resource.”
Massive Sulphide Mineralization
The Napoleon and Cinco Senores vein corridors host multi-episodic, quartz-carbonate veins that host multiple pulses of mineralization. One phase of this mineralization is a sub-massive to massive sulphide phase that contains up to 5,080 g/t silver, 199 g/t gold with up to 25% combined lead and zinc (Figure 1).

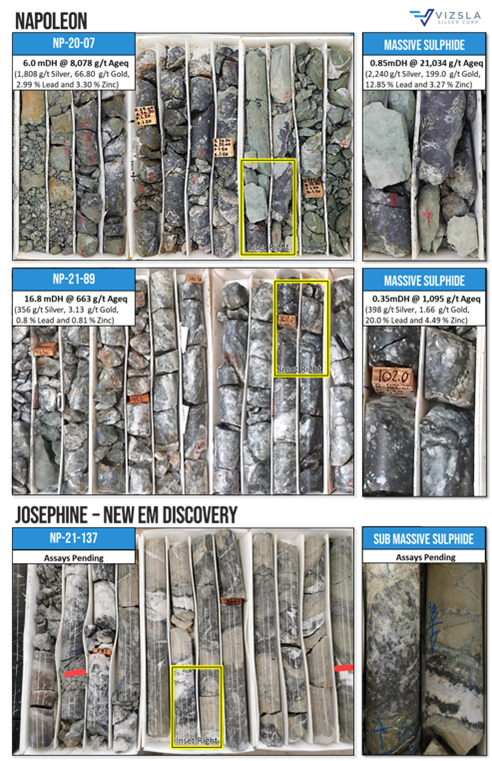

Figure 1: Photos of massive sulphide mineralization from the Napoleon and Josephine veins
This style of mineralization is rare in epithermal deposits and represents a strongly metal rich fluid that has undergone very rapid precipitation to form bands of massive sulphides. The connected nature of the metal allows it to conduct electricity which in turn allows for direct detection using electromagnetic techniques.

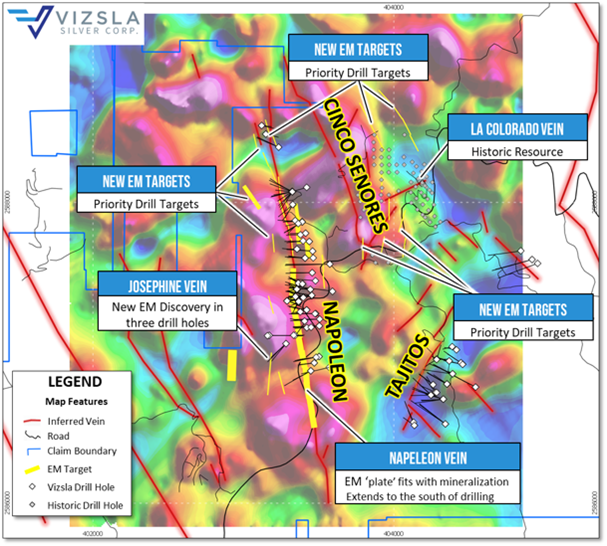

Figure 2: Drone magnetic survey (residual Reduced to Pole) with drill holes, mapped veins and
new EM targets (yellow 3D ‘plates’ projected to surface) plotted and labelled.
Fixed Loop Electromagnetic Survey
FLEM detects massive sulphide mineralization by running a current through a large loop of wire laid on the ground to induce a magnetic field in the earth. As the weakening magnetic field moves through the earth it sets up a circulating electrical field in the shape of any massive sulphide bodies that it passes through. This new electrical field in turn weakens, setting up a secondary magnetic field that is measured on surface. Geophysicists with modern computer programs can back calculate the shape of the conducting massive sulphide and model a 3D “plate” representing the source of the anomaly.
A test survey was completed by Zonge International was undertaken in April and May at Panuco and the results showed EM plates fit with mineralization drilled at the Napoleon discovery (Figure 2). In addition, five new priority conductive trends were modelled along with many more subtle anomalies.
Mineralization at Tajitos is not related to massive sulphides and was not detected with FLEM.
Drilling has been completed on one of the new EM targets and three holes have intersected massive sulphide mineralization in holes NP-21-132, NP-21-137 and NP-21-139. This vein has no known surface expression and represents a new vein, named the Josephine Vein, that runs parallel to the west of the main Napoleon trend.
The remaining targets will be tested in the coming weeks. Targets exist parallel to the Napoleon vein and at Cinco Seniors they coincide with an area of known workings where Vizsla has sampled high grades trend to the north and south of the historic resource defined by Silverstone on the flat lying La Colorada Vein.
Based on this success the Company has commenced planning for a property wide airborne electromagnetic survey to detect additional anomalies across Panuco. Any newly generated anomalies will allow the Company to recognise new veins across the district and aid prioritizing the best zones along known veins for drilling.
Drone Magnetic Survey
In April, a drone magnetic survey was also completed over the Napoleon and Cinco Senores Corridors. The Napoleon vein is clearly shown as a linear magnetic low due to the epithermal fluids demagnetising the host rocks while the Tajitos vein occurs on a linear break between magnetic host rocks in the footwall and non-magnetic host rocks in the hangingwall (Figure 2).
The technique shows multiple similar linear features, some coinciding with mapped veins and a structural geological interpretation is underway to support mapping and to generate and prioritize new drill targets. The planned airborne EM survey will also extend the magnetic survey across the entire Panuco district.
Unlocking the Greater District
Drilling is currently underway on four vein corridors, Napoleon, Cinco Senores, Cordon del Oro and Animas. The current resource drilling areas of Napoleon and Tajitos represent a very small subset of the known veins at Panuco and exploration is continuing in conjunction with resource drilling to find new orebodies.
Strong drilling results have been returned from each vein corridor (Figure 3) and the Company continues to explore for both virgin zones of mineralization and continuations of known mineralization beneath mine workings. With over 123 know recorded mines and prospects, the Company prioritizes larger volume targets to most efficiently define resources across the district (see news release dated December 17th, 2021 for more details on the exploration strategy).
Adding direct detection of massive sulphides with geophysical techniques to a systematic geological ranking approach makes for a powerful combination to unlock one of Mexico’s largest epithermal districts.

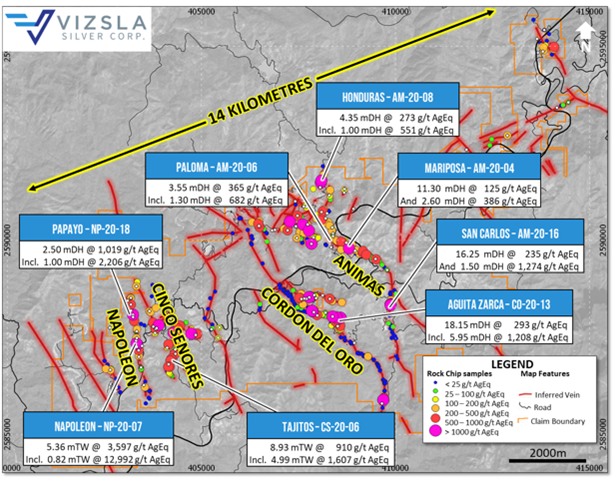

Figure 3: Highlighted drilling results from Vizsla’s programs on the four vein corridors that have been the Company’s initial focus. Vein corridors labelled in yellow.
Note: All numbers are rounded. Silver equivalent is calculated using the following formula: Silver-equivalent = ((Au_g/t x 52.48) + (Ag_g/t x 0.5289) + (Pb_ppm x 0.0013) + (Zn_ppm x 0.0013)) / 0.5627. Metal price assumptions are $17.50 oz silver, $1,700 oz gold, $0.75 pound lead and $0.85 pound zinc, recoveries assumptions are 96% gold, 94% silver, 78% lead and 70% zinc based on similar deposit types.
About the Panuco project
Vizsla has an option to acquire 100% of the newly consolidated 9,386.5-hectare Panuco district in southern Sinaloa, Mexico, near the city of Mazatlán. The option allows for the acquisition of over 75 kilometres of total vein extent, a 500 ton per day mill, 35 kilometres of underground mines, tailings facilities, roads, power and permits.
The district contains intermediate to low sulfidation epithermal silver and gold deposits related to siliceous volcanism and crustal extension in the Oligocene and Miocene. Host rocks are mainly continental volcanic rocks correlated to the Tarahumara Formation.
Quality Assurance / Quality Control
Drill core and rock samples were shipped to ALS Limited in Zacatecas, Zacatecas, Mexico and in North Vancouver, Canada for sample preparation and for analysis at the ALS laboratory in North Vancouver. The ALS Zacatecas and North Vancouver facilities are ISO 9001 and ISO/IEC 17025 certified. Silver and base metals were analyzed using a four-acid digestion with an ICP finish and gold was assayed by 30-gram fire assay with atomic absorption (“AA”) spectroscopy finish. Over limit analyses for silver, lead and zinc were re-assayed using an ore-grade four-acid digestion with AA finish.
Control samples comprising certified reference samples, duplicates and blank samples were systematically inserted into the sample stream and analyzed as part of the Company’s quality assurance / quality control protocol.
The Company’s disclosure of technical or scientific information in this press release has been reviewed and approved by Martin Dupuis, P.Geo., Vice President of Technical Services for Vizsla Silver. Mr. Dupuis is a Qualified Person as defined under the terms of National Instrument 43-101.
